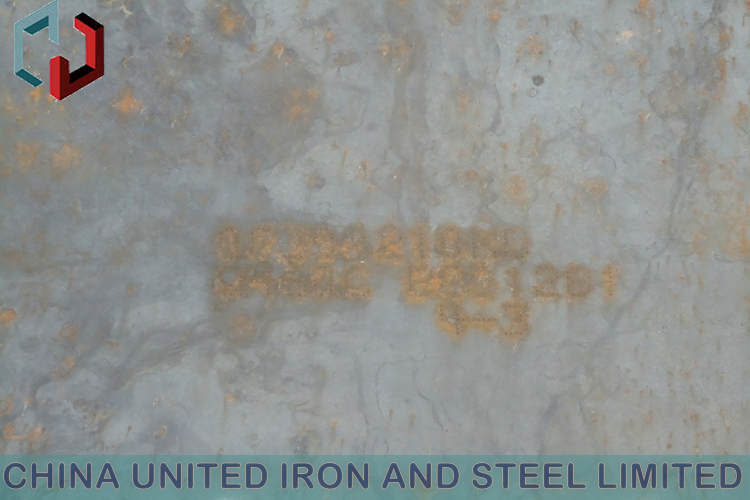

GB-T1591 Q460D Steel Plate supplier
- Q460D Adopt standard: GB-T1591 Standard Specification is for Rolled Steels for Welded Structure
- Q460D Specification: Thickness: 1mm to 500mm; Width: 1500mm to 4500mm: Length: 3000mm to 27000mm
- Third Party Inspection for Q460D: ABS, DNV, BV, GL, CCS, LR, RINA, KR, NK, CE, SGS, IKE, IEI or other quality department.
- Q460D Chemical composition Max % of the Product analysis of grade
C | Si | Mn | P | S | Nb | V | Ti |
0.20 | 0.60 | 1.80 | 0.030 | 0.025 | 0.11 | 0.20 | 0.20 |
Cr | Ni | Cu | N | Mo | B | Als min | |
0.30 | 0.80 | 0.55 | 0.015 | 0.20 | 0.004 | 0.015 |
- Q460D Yield strength
Nominal thickness (mm) | To 16 | 16-40 | 40-63 | 63-80 | 80-
100 |
100-
150 |
150-
200 |
200-
250 |
250-
400 |
ReH – Minimum yield strength (MPa) | 460 | 440 | 420 | 400 | 400 | 380 | – | – | – |
- Q460D Tensile Strength
Nominal thickness (mm) | To 40 | 40-63 | 63-80 | 80-100 | 100-150 | 150-250 | 250-400 |
ReH – Minimum yield strength (MPa) | 550-720 | 550-720 | 550-720 | 550-720 | 530-700 | – | – |
- Q460D Impact Test degree and energy
Min Energy Nominal thickness | |||
Temperature ℃ | -20 | ||
Thickness (mm) | 12-150 | 150-250 | 250-400 |
Notch impact test. Min. absorbed energy | 34 | – | – |
- Equivalent grades of grade Q460D
- Q460D Delivery Time Or Lead Time: 15-30days
- Q460D Extra Service: Pretreatment (Shot Blasting, Sand Blast, Painting and Galvanized), Cutting Parts, Sample Service, Third Party inspection, UT Test and Size inspection.
- If you have any requirement in steel plate for Q460D, whether the new plate or stock list of material, please feel free to contact us by email of calling.
- If you had any question at our plate or service. Please contact our after service department to get faster reply.
